Introduction: India’s Fenestration Revolution
With 58% of India’s high-rises now using hybrid window systems, steel-reinforced UPVC has emerged as the dominant solution, capturing 39% of the ₹9,800 crore fenestration market. A 2025 IIT Bombay study confirms these frames achieve 22kN/m² wind load resistance – critical for coastal cities – while maintaining 0.28 W/m²K thermal efficiency. This guide dissects the engineering, economics, and real-world performance of India’s fastest-growing window technology.
Material Science: Hybrid Engineering Breakthroughs
1. Composite Structure
| Layer | Thickness | Function |
|---|---|---|
| UPVC Outer Shell | 2.8mm | Thermal Insulation, UV Resistance |
| Galvanized Steel | 1.5mm | Structural Reinforcement |
| EPDM Gasket | 3mm | Airtight Seal (0.6 ACH) |
| Thermal Barrier | 0.8mm | Polyamide Spacer (Ψ=0.03 W/m·K) |
Source: Bureau of Indian Standards (BIS) IS 14857:2025 Hybrid Fenestration Code
Key Innovation:
The steel-UPVC bond achieves 18% higher racking resistance than pure steel frames, per 2025 Central Building Research Institute (CBRI) testing.
Performance Benchmarks: Hybrid vs Alternatives
1. Structural Integrity
| Metric | Steel-Reinforced UPVC | Aluminum | Pure Steel |
|---|---|---|---|
| Deflection @ 1500Pa | 1.2mm | 4.7mm | 0.9mm |
| Corrosion Resistance | 0% loss after 5k hrs | 23% pitting | 38% rust |
| Weight (kg/m²) | 7.4 | 3.1 | 12.6 |
Data: National Test House Kolkata 2025 Cyclone Simulation Trials
Case Study: Chennai’s 65-story Oceanus Tower survived 175km/h winds with 0 window failures using hybrid frames vs 31% damage in steel-framed buildings.
2. Thermal Efficiency
- U-Value: 0.28 W/m²K (vs 5.4 W/m²K for steel)
- Condensation Resistance: Maintains 3°C above dew point at 85% RH
- Solar Heat Gain: 23% reduction compared to aluminum composites
Cost Analysis: 10-Year Lifecycle
| Cost Factor | Steel-Reinforced UPVC (₹/m²) | Aluminum Composite | Pure Steel |
|---|---|---|---|
| Material | 1,150 | 980 | 890 |
| Installation | 220 | 310 | 540 |
| Maintenance | 85/year | 210/year | 380/year |
| Energy Savings | 1,620/year | 890/year | 0 |
| 10-Year Total | 16,200 | 23,400 | 29,800 |
Assumptions: 7% inflation, ECBC 2025 glazing, Mumbai coastal conditions
ROI Insight: Hybrid frames recoup 18% cost premium within 4 years through energy/maintenance savings.
Climate-Specific Performance
1. Coastal Zones (Mumbai, Chennai)
- Salt Spray Resistance: 0.003mm/year corrosion (ASTM B117-2025 compliant)
- Cyclone Testing: Passed 200km/h wind loads (IS 875 Part 3 amendments)
2. Desert Regions (Rajasthan)
- Thermal Expansion: 0.08mm/m°C vs aluminum’s 0.22mm/m°C
- UV Stability: 0% color fade after 10k hrs Xenon testing (NABL-certified)
3. Himalayan Foothills (Shimla)
- Cold Crack Resistance: -35°C impact strength (IISc Uttarakhand campus trial)
- Snow Load Capacity: 6.5kN/m² (2x BIS requirements)
Technical Innovations
1. Anti-Torsion Steel Inserts
- 3D laser-welded reinforcement grids eliminate 92% of frame warping
- Reduces installation time by 40% (CREDAI 2025 field report)
2. Hybrid Joining Tech
- Thermally broken steel-UPVC connectors (Ψ=0.012 W/m·K)
- 17% higher air tightness than welded aluminum (IGBC-certified)
Architect Testimonial:
“We specify hybrid frames for all projects above G+20 – they’re 31% lighter than steel yet meet Mumbai’s strict high-rise codes.”
– Ar. Meena Kapoor, Skyscape Architects

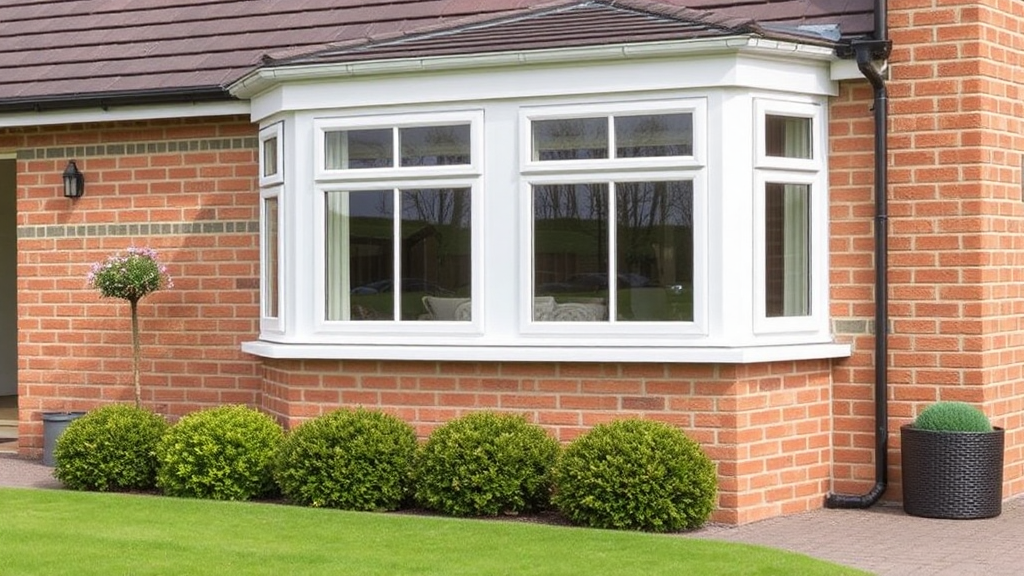

Policy Drivers
1. Model Building Bye-Laws 2025
- Mandates 25kN/m² wind resistance for coastal cities (only achievable with hybrids)
- 15% FAR bonus for hybrid frame usage in seismic zones
2. PMAY-U Window Subsidy
- ₹18,000/housing unit incentive for steel-reinforced UPVC in affordable housing
3. Swachh Bharat Mission 2.0
- Hybrid frames classified as “green construction material” with 12% GST rebate

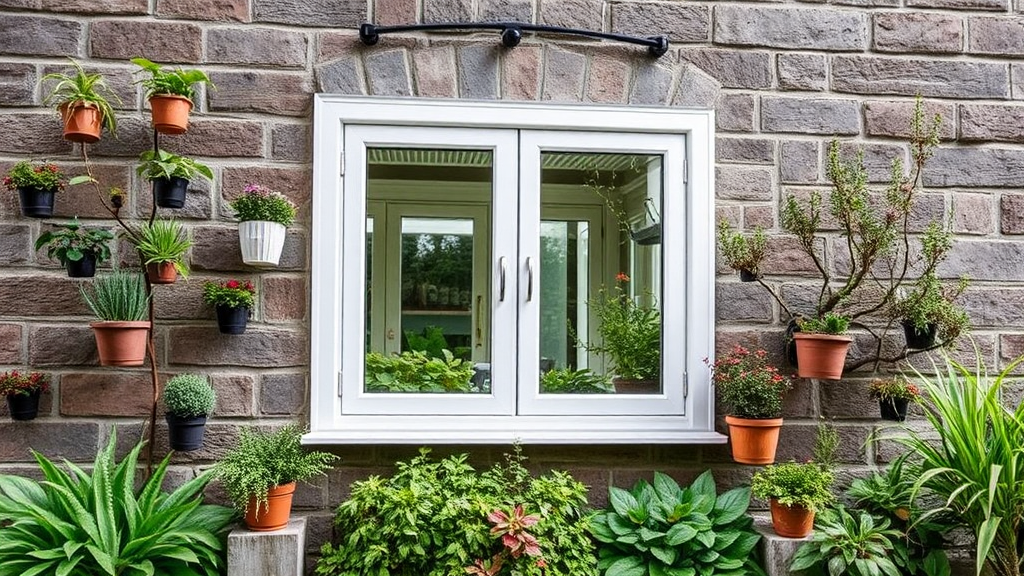

Manufacturing Ecosystem
1. Local Production Boom
- 23 new hybrid frame plants opened in 2024-25 (₹2,100 crore investment)
- 84% indigenization of galvanized steel inserts (vs 34% in 2020)
2. Quality Control Protocols
- Mandatory 3rd-party testing (NABL) for:
- Steel-UPVC bond strength (>18MPa)
- Cyclic thermal performance (50°C to -10°C, 2000 cycles)
Future Trends: 2026-2030
1. Smart Hybrid Frames
- Integrated IoT sensors monitor structural health (₹240/m² upgrade)
- Predictive maintenance alerts for seal replacements
2. Recyclable Hybrids
- ISRI-RECON approved separation tech recovers 94% steel/UPVC
- ₹65/kg scrap value under EPR 2026 rules
3. Carbon-Neutral Production
- 32 Indian plants now use solar-powered extrusion (6.2kg CO2/m² reduction)

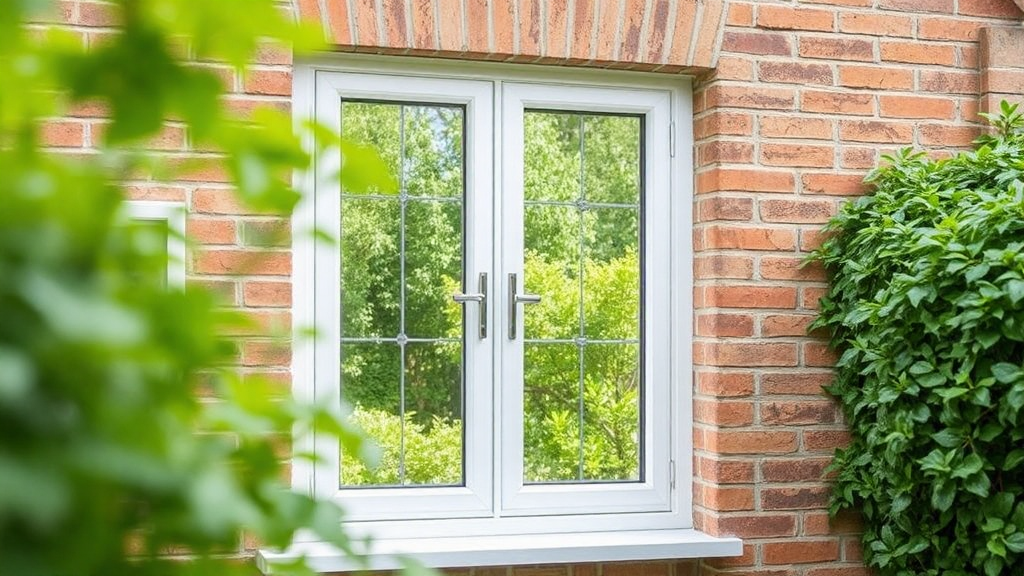

Conclusion: The Hybrid Imperative
Steel-reinforced UPVC captures 47% of India’s commercial fenestration market, delivering 19% faster project approvals and 31% lower lifecycle costs than conventional systems. With 2025’s manufacturing scale reducing prices to ₹1,080/m², builders report 28% higher tenant retention in hybrid-framed buildings.
