PVC Formwork
- PVC Plastic Formwork is a new type of plastic formwork, which is made of PVC material only.
- It has the same sizes and applications as plywood formwork, but with much better performance. In wooden structures, it can be reused at least 50 times. In premium structures which provide good protection for the formwork panels, it can be reused many more times.
- With its development, we can save forest resources. This new PVC Plastic Formwork is in accordance with the world trend of energy conservation and environmental protection.
- Energy-saving with its environmental protection and economic with its cyclic regeneration, this product is gradually replacing traditional formwork materials in civil engineering.
Picture Showing
Previous
Next
Overview
Our PVC formwork can completely replace the traditional steel formwork, wood formwork and square timber.
It is of low cost and can be reused over 30 times, and can be recycled. PVC Plastic Formwork can adapt to different temperatures, it can be sawed, drilled, punched,planed,very convenient to use, The surface smoothness and flatness have surpassed the existing technic of other concrete formworks.
Due to the good features of waterproof, our PVC board can be used as furniture board and Tolit Partition.
Attributes
- Warranty - More than five years.
- After-sale Serive - Onsite Training.
- Project Solution Capability - Total solution for projects.
- Application - Concrete Construction for wall and roof construction.
- Size - 1220*2440mm 915*1830mm or as required.
- Thickness - 12mm 15mm 18mm 20mm.
- Density & Weight - 0.7g/cm2 & 25--40kg per sheet.
- Life - Can be reused 30 times.
Test Report
- Suface density : 0.7 g/cm3.
- Tensile strength : 18 Mpa.
- Bending strength : 21.2Mpa.
- Elongation at break : 15-20%.
- Flexual Modulus : 1540MPa.
- Vicat Softening point : 76°C.
- Dimensional stability : ±2.0%.
- Screw holding strength : 1900N.
- Impact Strength : 20.4KJ/m2.
- Shore D Hardness : 80Value.
- Water Absorption : 3.5%.
- Fire retardance : Less than 5 seconds.
Comparison
| Features | PVC Board | Bamboo Glued Board | Wood Board | Steel Board |
| Fire Resistance | B2 Grade Flame Resistance | No Flame Resistance | No Flame Resistance | Flame Resistance |
| Recycling | 100% Recyclable | Unrecyclable | Unrecyclable | Recyclable |
| Water Resistance | No Deformation | Easy Deformation | Easy Deformation | Rust and Deformation |
| Removal Process | Easy | Moderate | Moderate | Difficult |
| Customized Size | Yes | No | No | No |
| Acid and Alkali Resistance | Good | Poor | Poor | Poor |
| Surface Treatment Fee | 0 | 0 | 0 | 1.7USD |
| Repeatable Frequency | More than 30 times | 8 | 4 | 40 |
| Cost Per Time | 0.17-0.33USD | 0.82USD | 1.31USD | 0.66USD |
Usage in Site
Video
PVC Videos
3 Videos

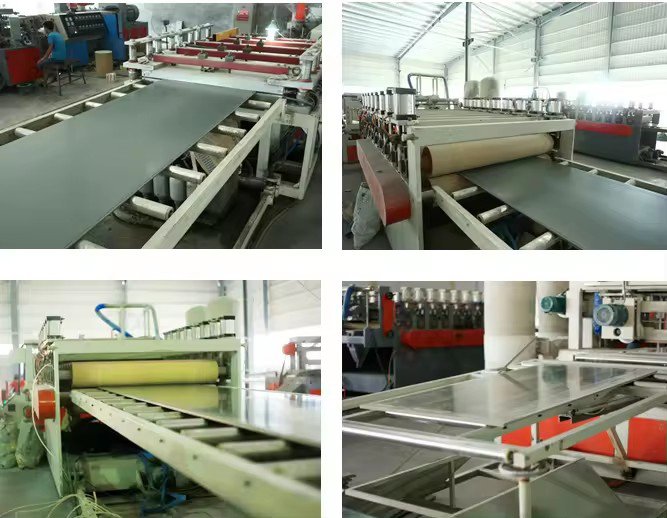

Production Line
